MOVIT SYSTEM

Inertial wearable system for Motion Capture and Motion Analysis

The System

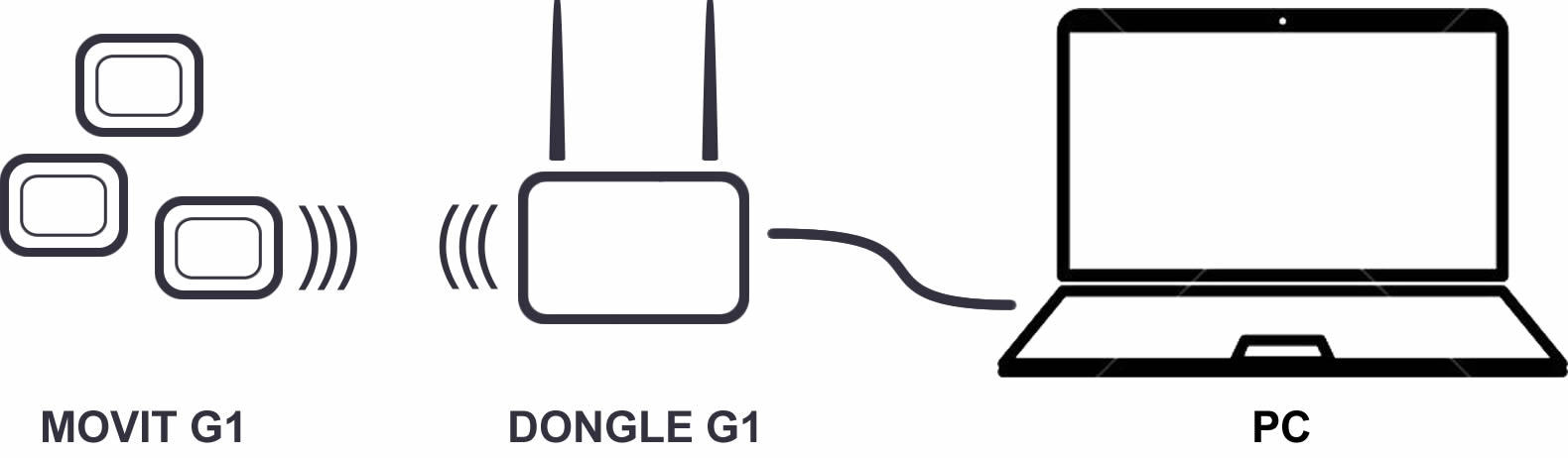

Movit System – 3D Edition is the ideal tool for researchers, professionals and specialists in every sector interested in objectively monitoring and quantifying human movements. Easy, fast and usable in any environment, thanks to the network of wearable inertial sensors, it provides a complete and accurate movement analysis. The system can be used both indoors and outdoors. It has no constraints of brightness and environment. No external infrastructure is required. The inertial devices are called Movit G1 and the USB receiver connected to the PC is called Dongle G1.

Movit_System_Slots

Positioning

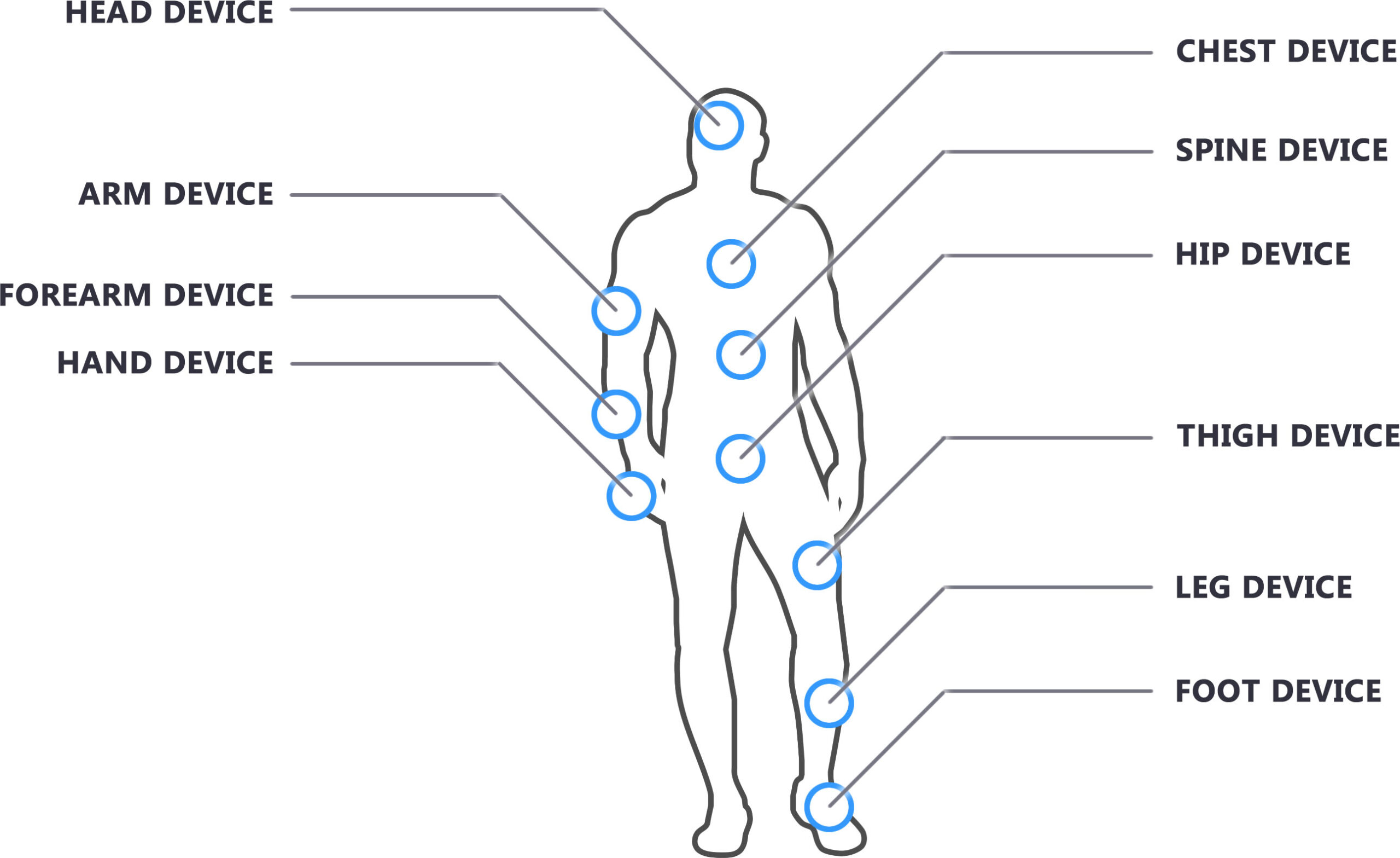

Each Movit G1 device has been designed to be universal and applicable on the main parts of the body. Through the wearable holders and a quick coupling / release system it is possible to wear the devices easily.

Outcomes

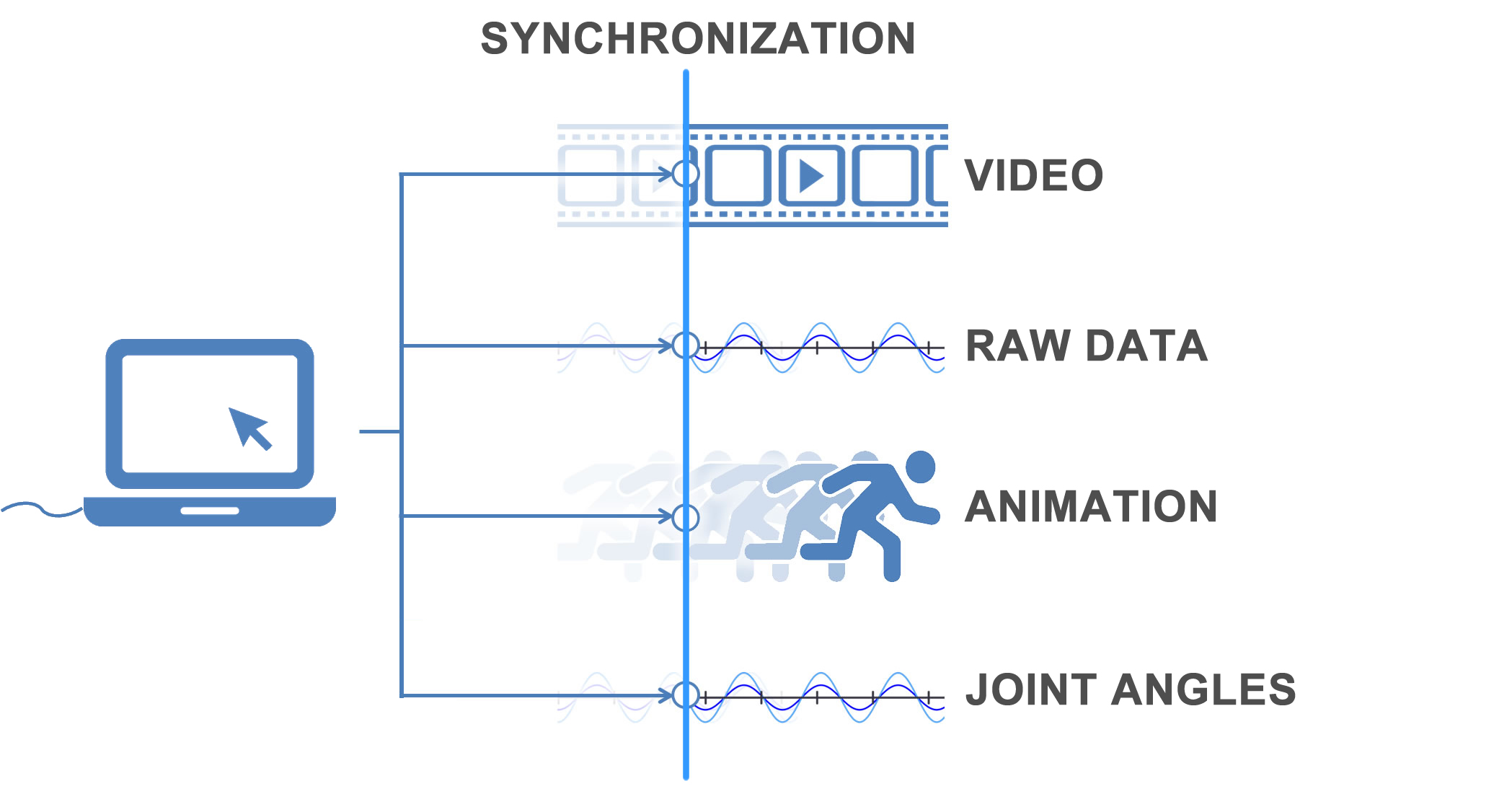

The system outputs raw data files, animation files, video files, and joint angle files. Each output can be selected or deselected. The raw data are the accelerometer, gyroscope, magnetometer, and quaternion values. The animation recorded is a standard BVH file. The video is a standard video file. The joint angles are saved in CSV format for easy import into Excel or other software. All information is synchronized with each other so as to be able to analyze the phenomenon from different points of observation

Movit_System_Outcomes_EN

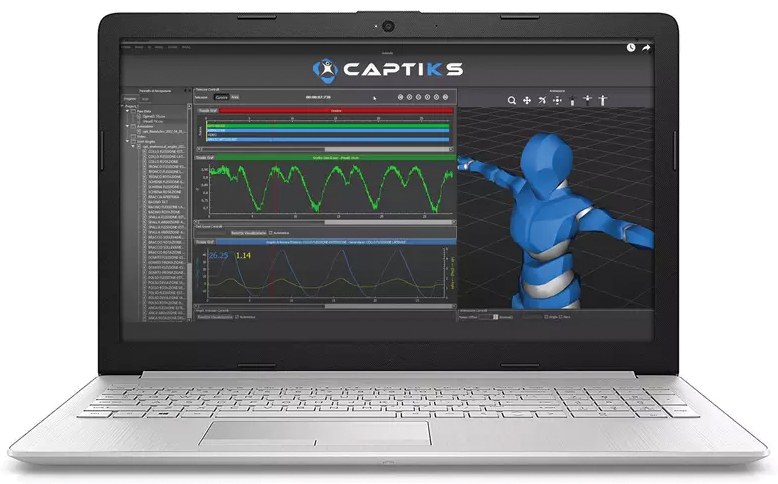

Motion Studio

The software for recording sessions and real-time visualization of:

Accelerations

Accelerations

Rotations

Rotations

Joint angles

Joint angles

3D animation

3D animation

Camera

Camera

Accelerations

Accelerations

3D orientation

Accelerations

Synchronization Inputs

Synchronization Inputs

Articular ranges

Articular ranges

Laptop

Features and Advantages of the Movit

Movit System

WIRELESS

Completely wireless system: no cables used. Each module is wireless and is universal.

Movit System

WEARABLE

No external infrastructure required. Indoor and outdoor operation.

Movit System

VIDEO

Possibility of recording a video stream synchronized with data acquisition.

Movit System

EASY

Easy to put on, easy to install, easy to use. Put the supports, insert the devices and ... Movit.

Movit System

FAST

The system is ready to operate within seconds.It takes a quick calibration & you can start your acquisition session immediately.

Movit System

SYNCHRONIZED

Synchronized data. All output files are synchronized with each other.

Movit System

MEMORY

No data loss with memory card. It is possible to record the data in the internal memory and download data after the session.

Movit System

DATA

Multiple system outputs: raw data, animation files, video files, joint angles files.

Movit System

AUTONOMY

High autonomy guaranteed by the internal battery to face even the longest work sessions.
